Hantek 6052BE PC-Based USB Oscilloscope 50MHz 2Channels 150MS/s Anodised Aluminium

Hantek 6052BE PC-Based USB Oscilloscope 50MHz 2Channels 150MS/s Anodised Aluminium

$159.21

Hantek 6052BE PC-Based USB Oscilloscope 50MHz 2Channels 150MS/s Anodised




Aluminium


Features:

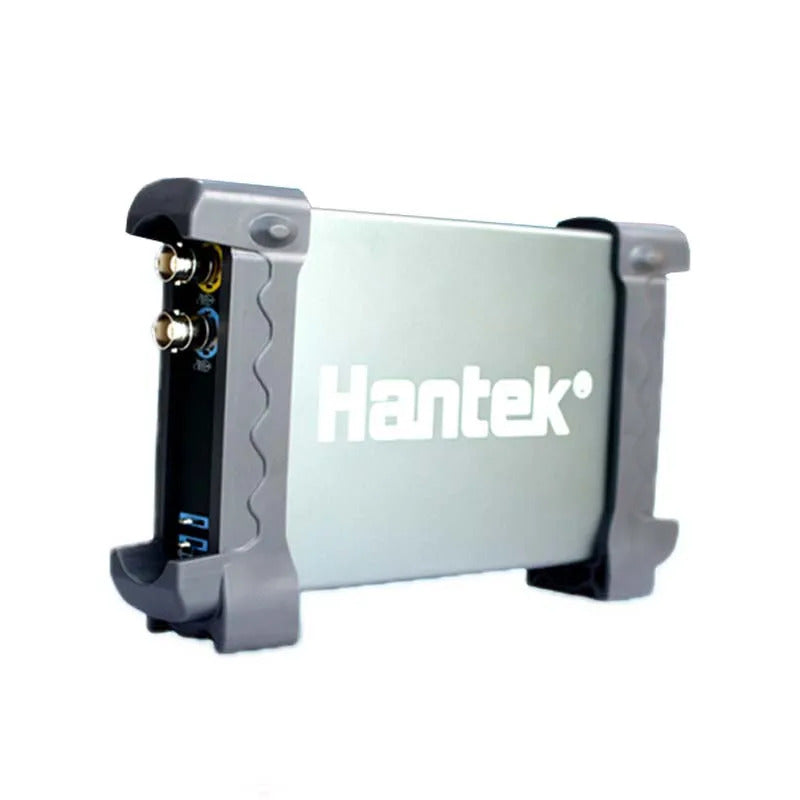

Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.
Standard USBXI TM interface, easily inserts into USBXI TM housing to make up a combination instrument.
USB2.0 interface, no external power source required, easy to use.

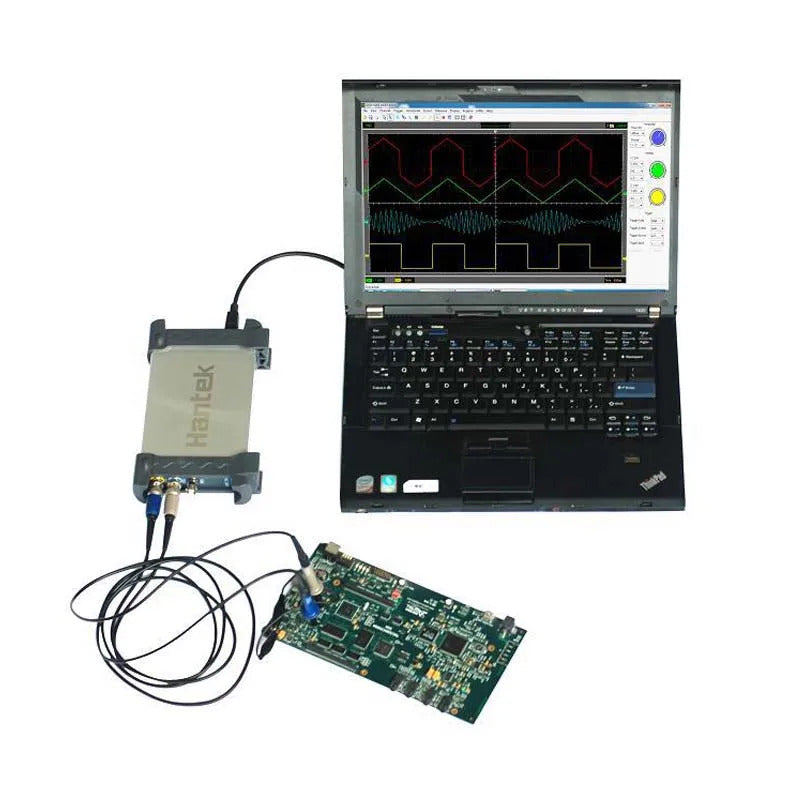

Be suitable for notebook computer, product line maintenance,be used easily on business.
Dimensions (mm):205(L) x120(W) x35(H), be carried easily.
High performance, 150MS/s real-time sampling, 50MHz Bandwidth.
Operating System: Windows 7, Windows NT, Windows 2000, Windows XP,VISTA.
23 measurement functions, PASS/FAIL Check, be suitable for technical application.

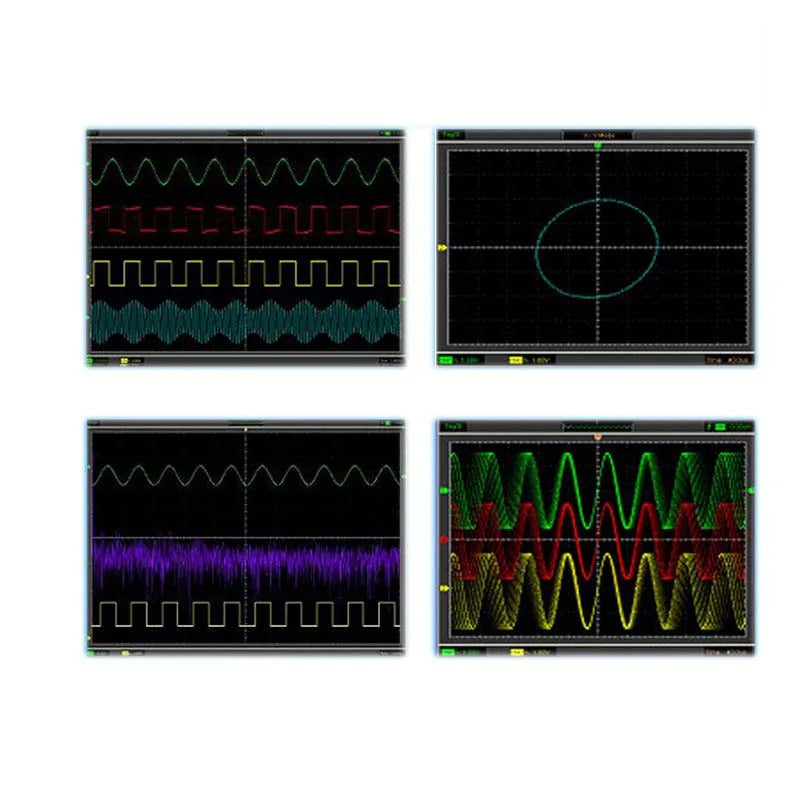

Waveform average, persistence, intensity,invert,addition, subtraction, multiplication, division,X-Y. plot.
Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.
FFT
One computer can connect many DSO, extend channel easily.
LabviewVBVCDelphiC++Builder Second Design instance.


Specifications:


Channel

2 Channels

Bandwidth

50MHz

Shot bandwidth

DC to 50MHz

Input Impedance

1MΩ 25pF

Max.Sample rate

150MS/s

Coupling

AC/DC/GND

Vertical resolution

8Bit

Gain range

10mV-5V, 9Steps

DC accuracy

+-3%

Timebase range

4ns-1h, 38 Steps

Vertical adjustable

Yes

Input protection

Diode clamping

X-Y

Yes

AutoSet

Yes (30Hz to 50MHz)

EXT.input

Yes

Trigger Mode

Auto, Normal, and Single

Trigger Slope

+/-

Trigger level adjustable

Yes

Trigger Type

Rising edge, falling edge

Trigger Source

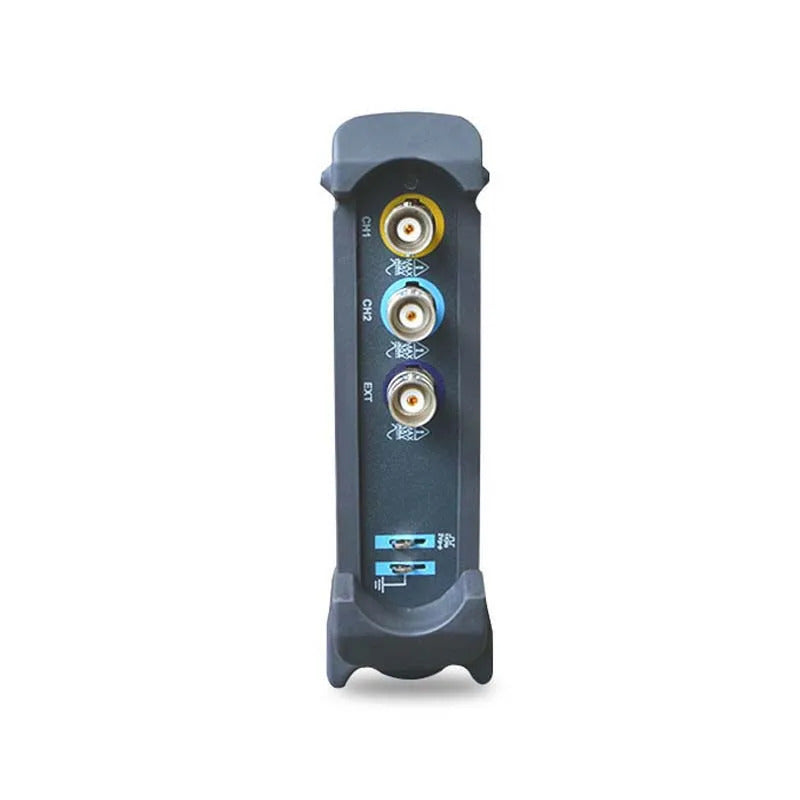

CH1, CH2, EXT

Pre/Post trigger

0-100%

Buffer size

10K-64KB/Channel

Sampling selection

Yes

Waveform Display

port/line, waveform average, persistence, intensity

Network

Open/Close

Vertical mode

CH1, CH2, Dual, ADD

Cursor measurement

Yes

Math

FFT, addition, subtraction, multiplication, division.

Cursor

Frequency, Voltage

Data Samples

10K-64K/Channel

Accessories

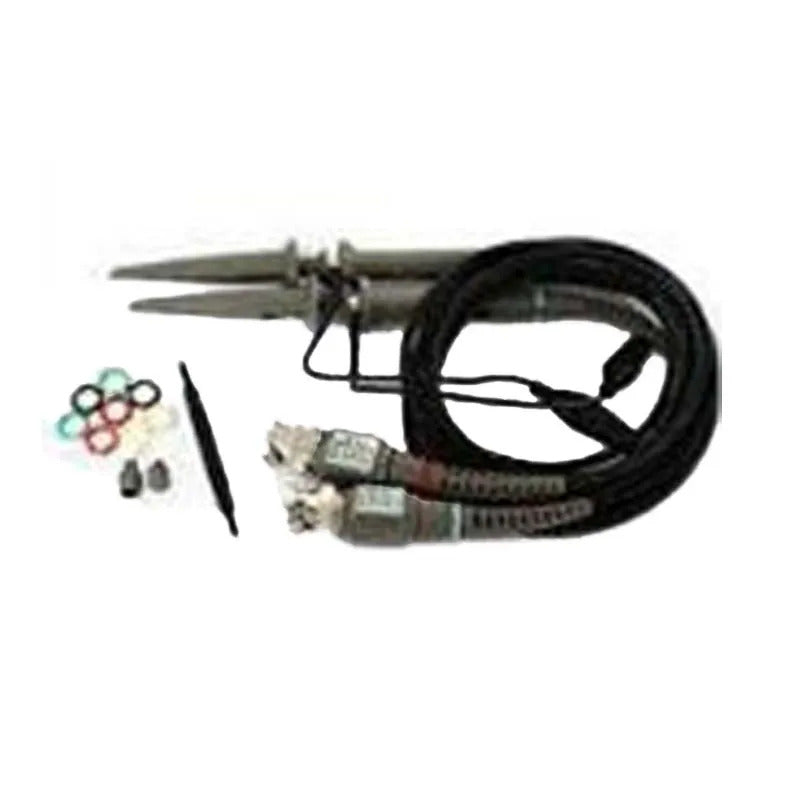

software, probes x2, PDF manual, USB cord


Color
