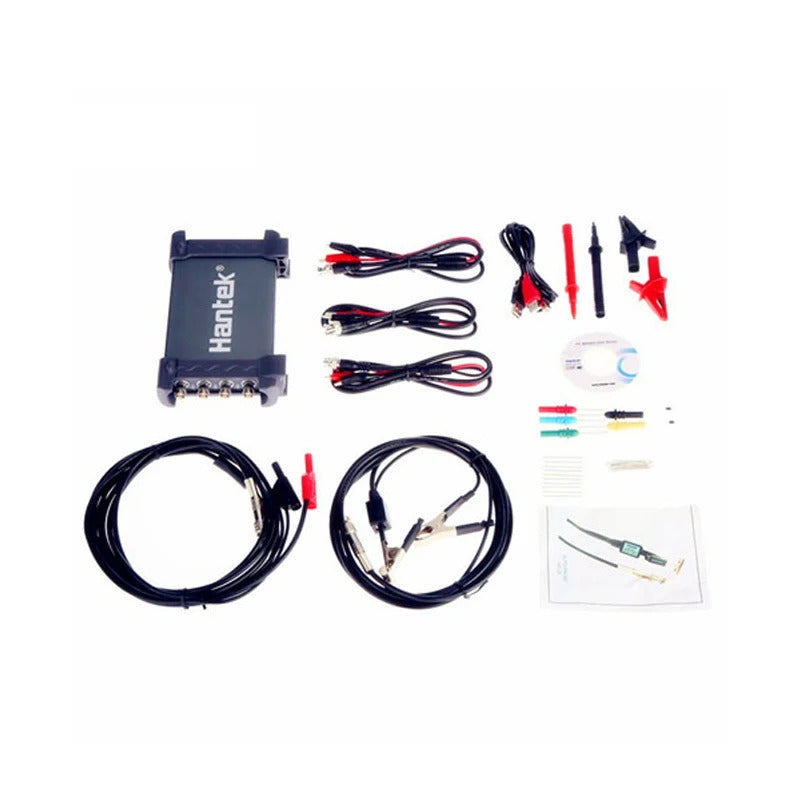

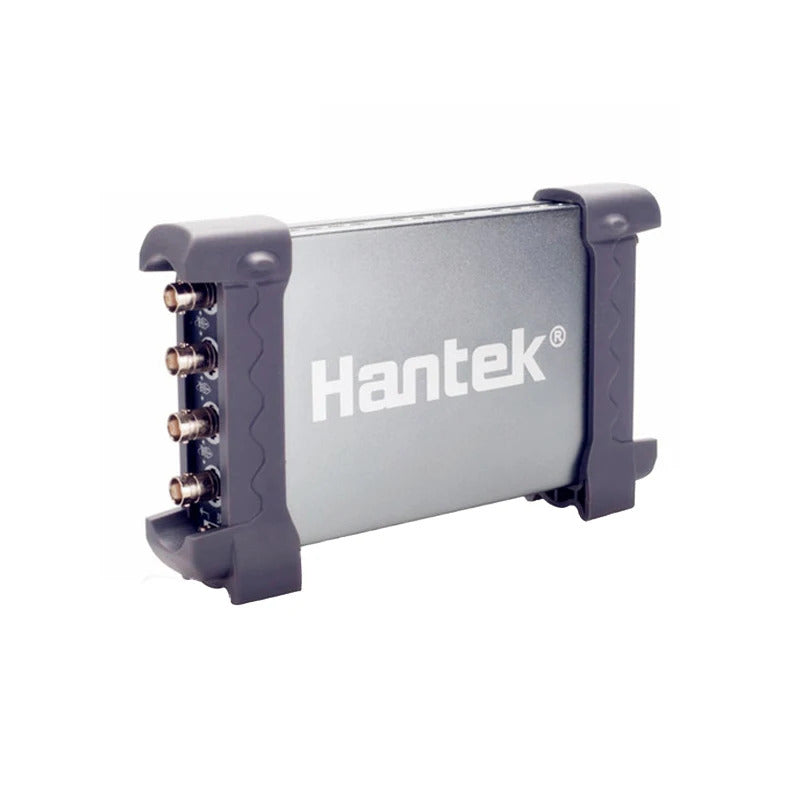

Hantek 6074BE (Kit I) Standard Equipped Over 80 Types Of Automotive Measurement Function USB2.0 4 Isolated Channels Oscilloscope
|
Hantek 6074BE (Kit I) Standard Equipped Over 80 Types Of Automotive Measurement Function USB2.0 4 Isolated Channels Oscilloscope Standard equipped over 80 types of automotive measurement function (Ignition Action/The Sensor/Bus Diagnosis/Performer/Startup&Charge); USB 2.0 interface plug and play, and no need extra power supply; Support tablet PC; Support WIN10/ WIN8/WIN7 etc.Free software upgrading constantly, higher cost performance; Support USBXI, easy to operate.4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth, small size, easy for carrying.Dynamic cursor tracking, waveform record and replay function. Features:

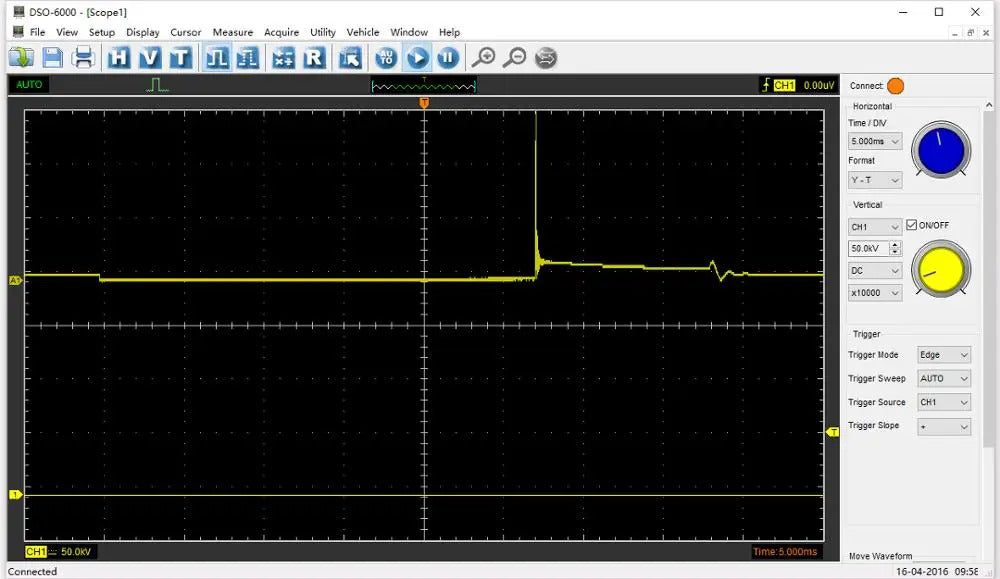

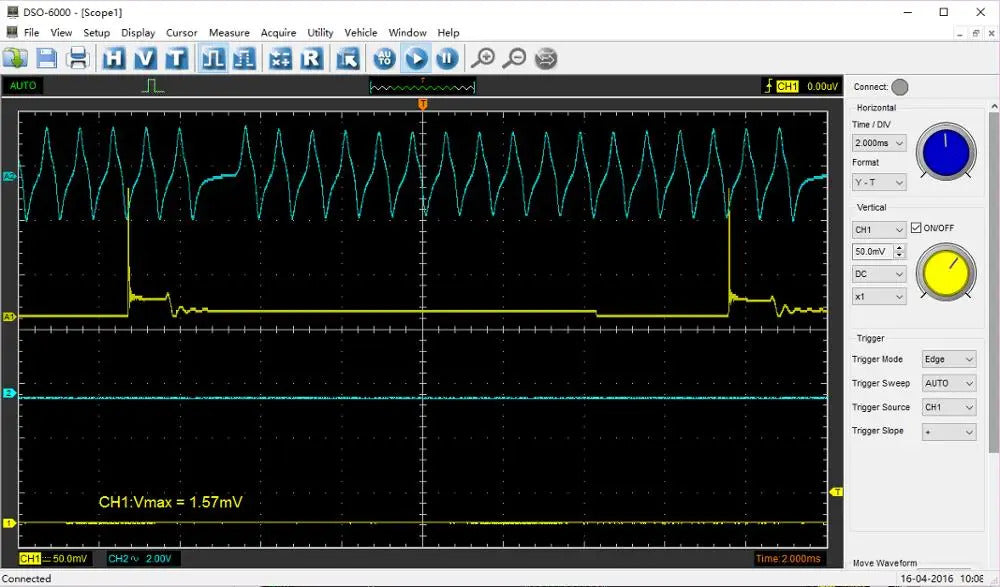

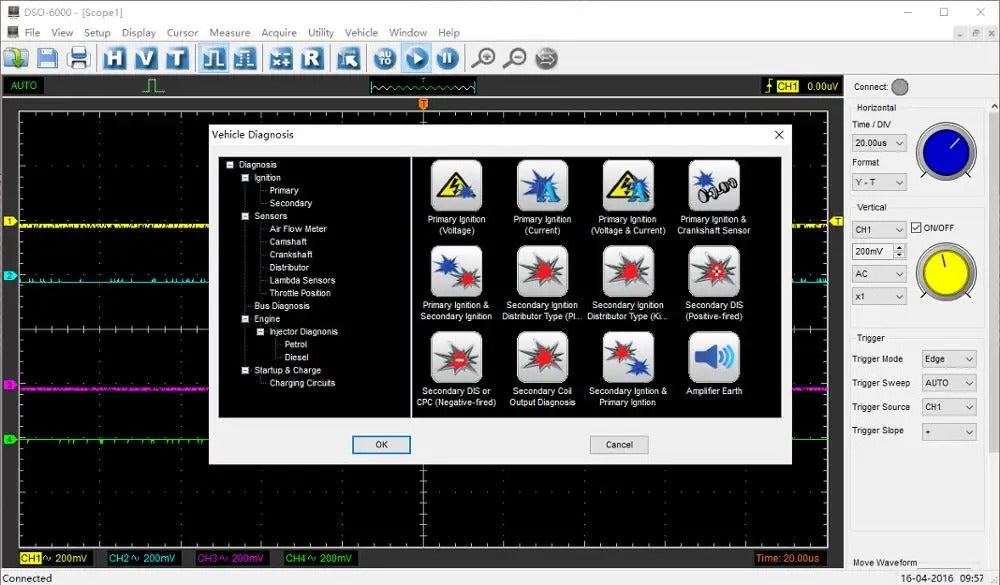

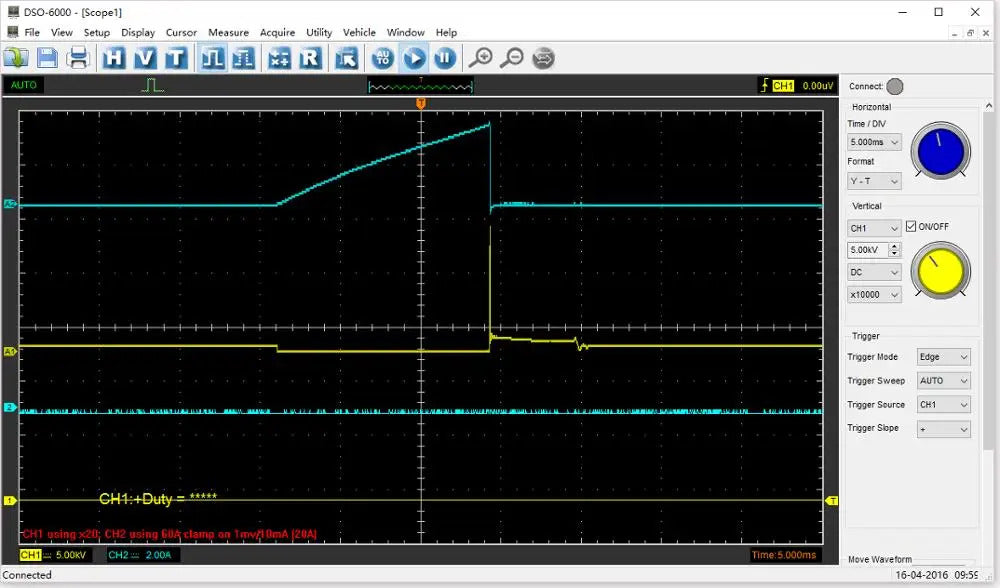

>Standard equipped over 80 types of automotive measurement function;First Diagnosis: Intake manifold vacuum ignition,Petrol fumes adjusting valve vacuum ignition,Idle exhaust ignition, Starting exhaust ignition;Ignition: primary and secondary;Sensor:Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position;Bus Diagnosis:CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus;Performer: Petrol/Diesel

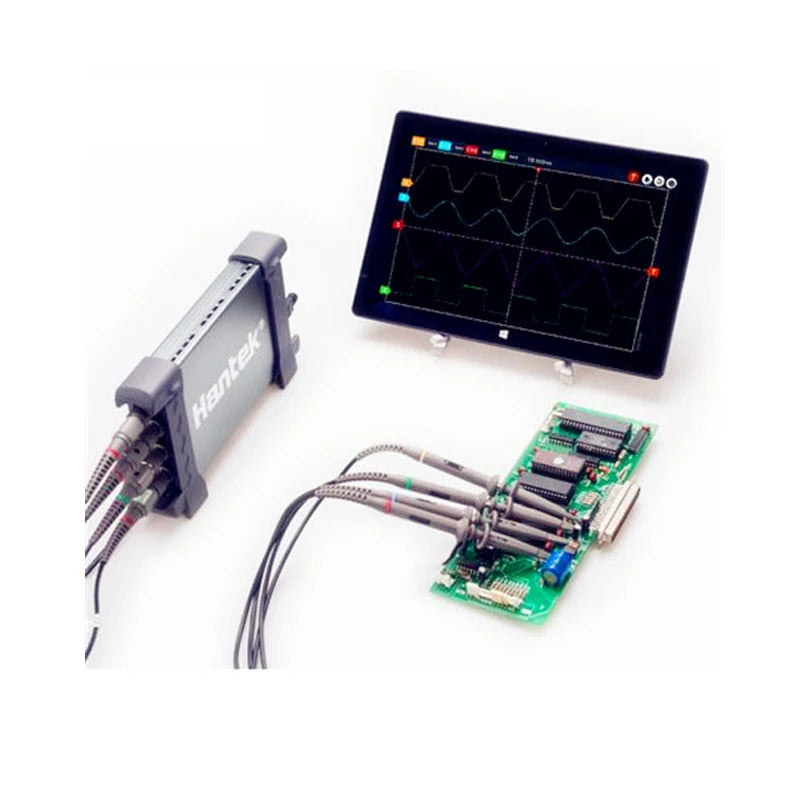

>Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use.Support WIN10/ WIN8/WIN7 etc.

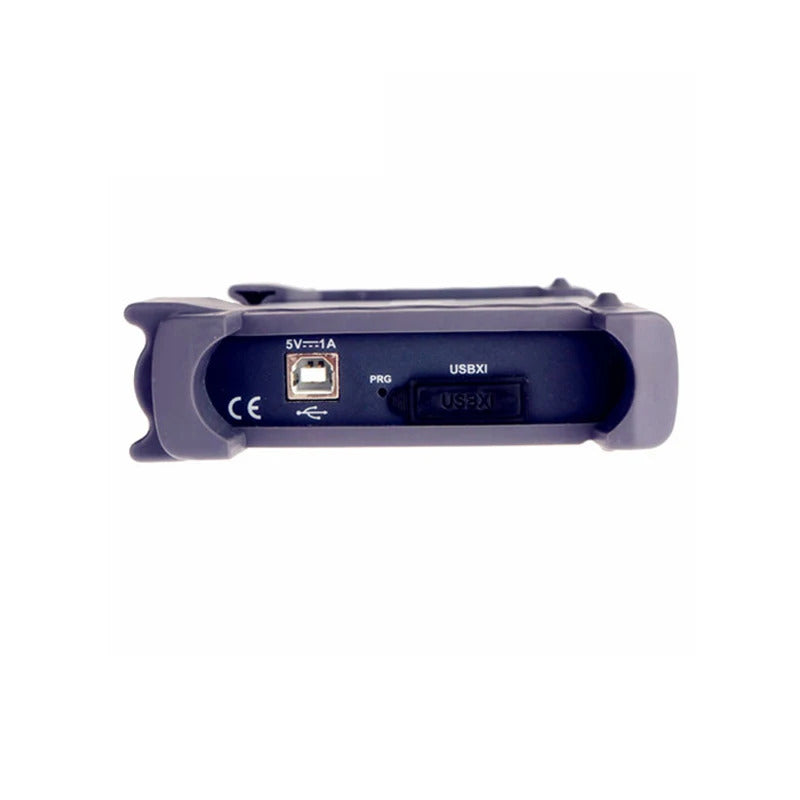

>USB 2.0 interface plug and play, and no need extra power supply;

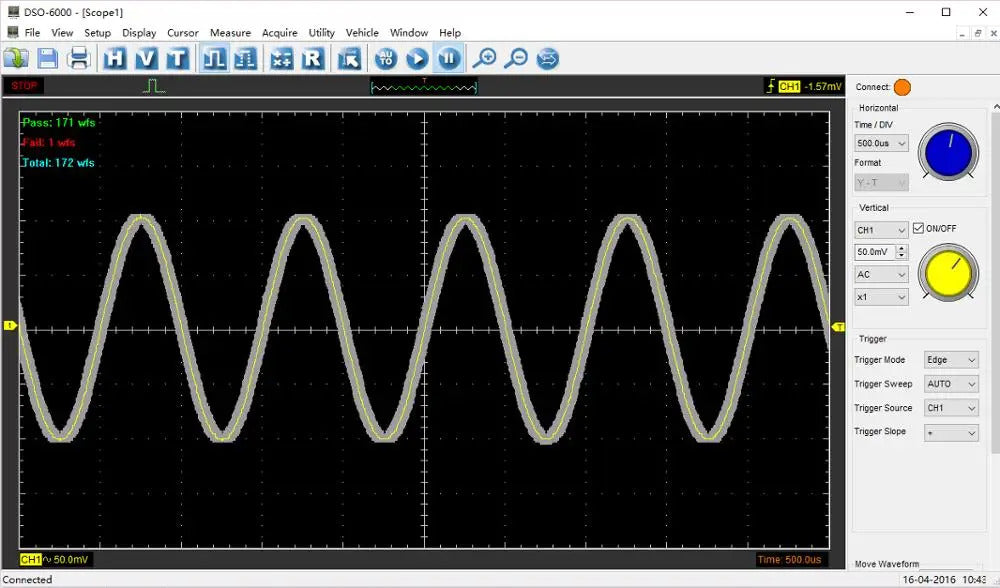

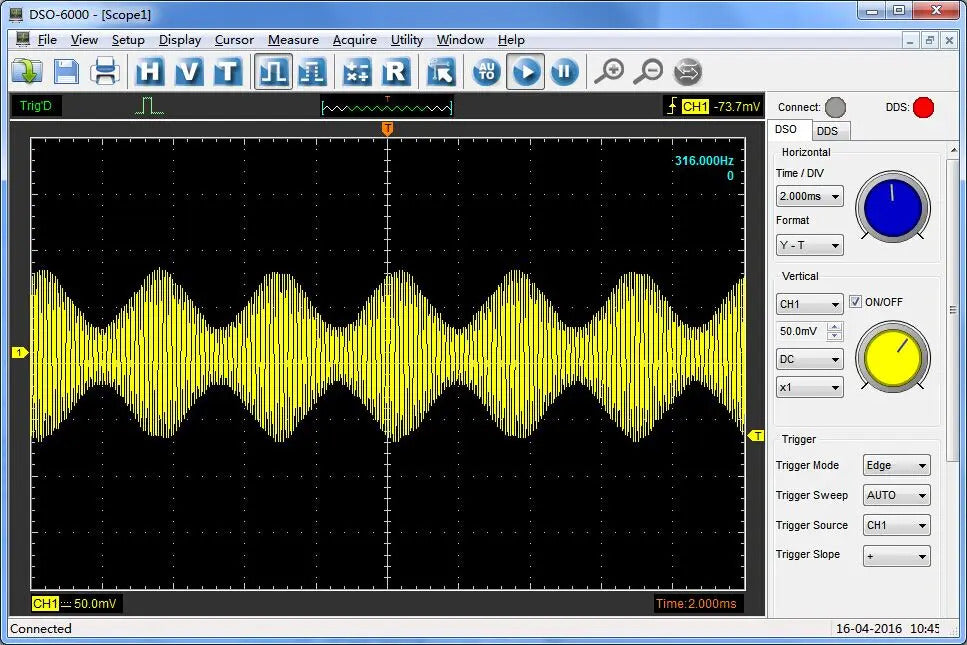

>Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check function.Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.

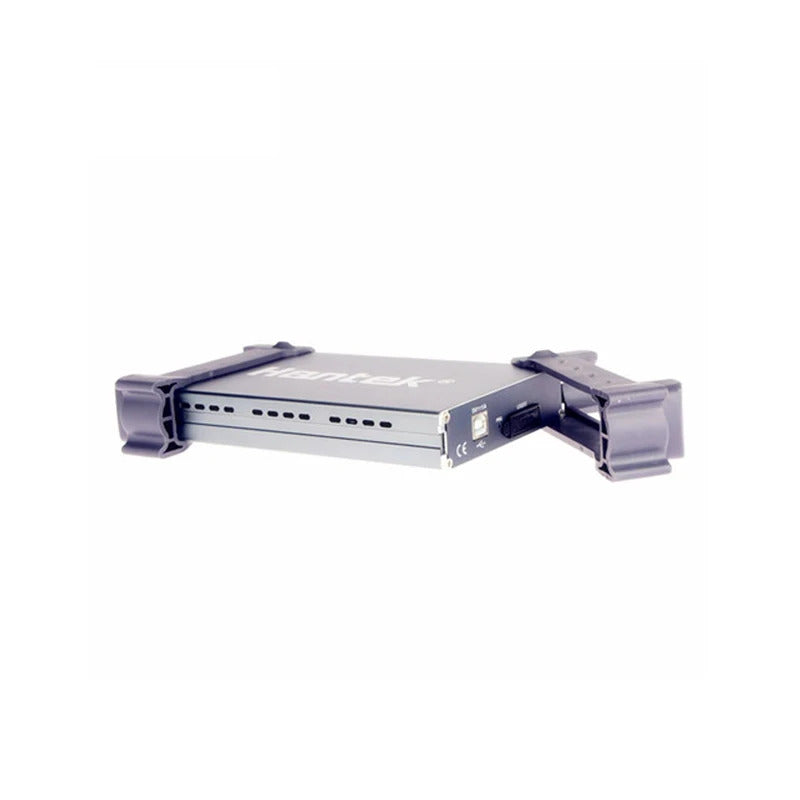

>Good mechanical design with small size which is easy for carrying.The outer case is made by the same material with iPad - Anodised aluminium.It has great heat resistance and abrasive resistance with beautiful appearance.The hardness of aluminium alloy surface is greatly improved.

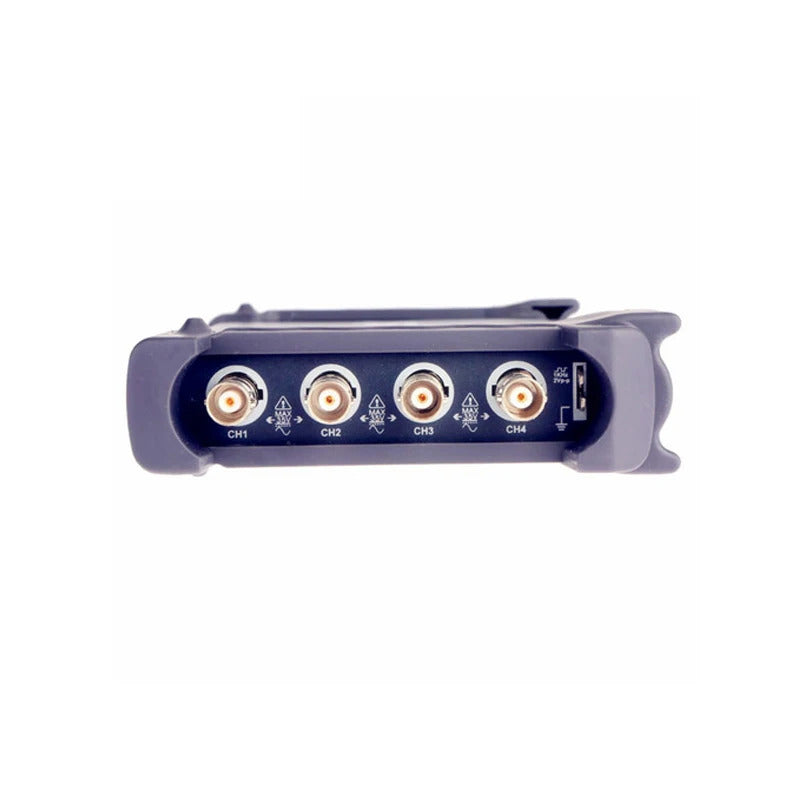

>4 isolated channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth,
>The waveform data could be output to EXCEL,BMP,JPG.

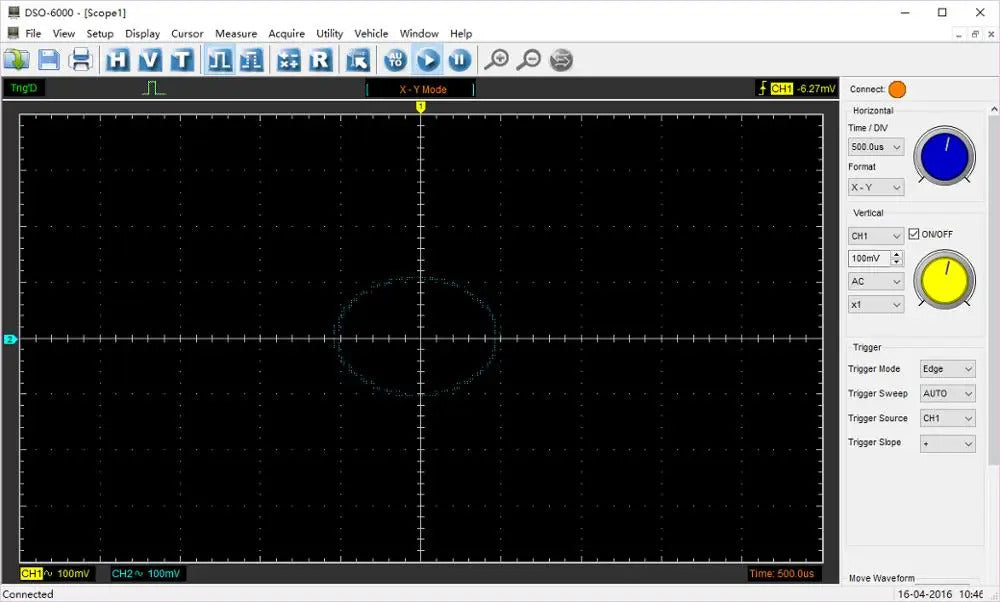

>Waveform averaging, afterglow,lightness control, reverse, add, subtract, multiply, divide, X-Y display.
>FFT spectrum analyzer
>One computer could connect with multiple oscilloscopes, expand the channel number easily.
>Provide secondary development library DLL; Provide Labview\VB\VC\QT developing examples
Specifications:
|
