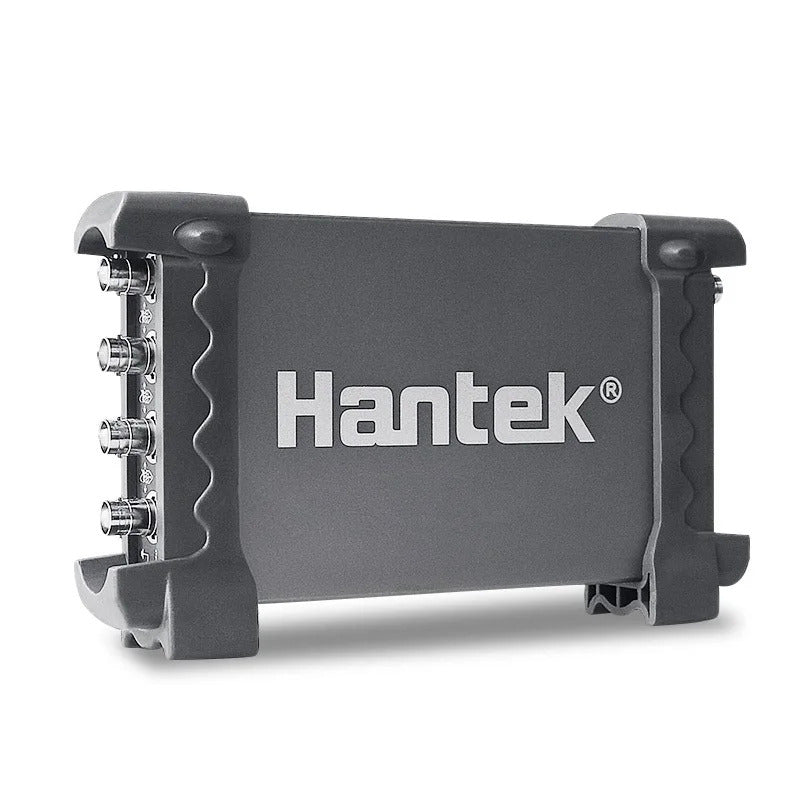

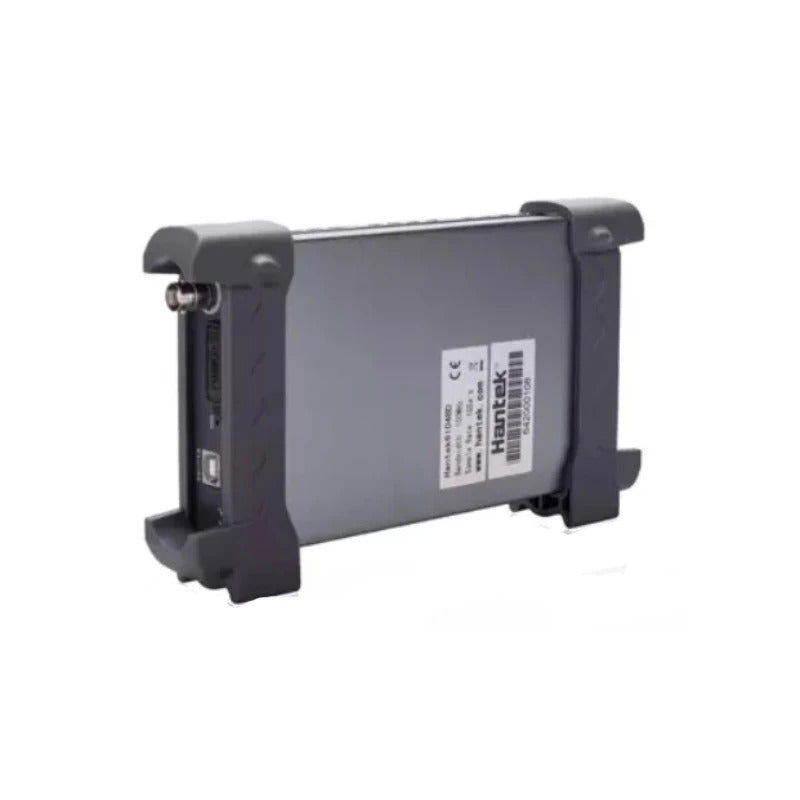

Hantek 6204BD Digital Oscilloscope Portable Oscillograph 200MHz 4 Channels Osciloscopio USB PC With 25MHz Signal Generator
Hantek 6204BD Digital Oscilloscope Portable Oscillograph 200MHz 4 Channels Osciloscopio USB PC With 25MHz Signal Generator
Features:
Meet or exceed the performance of bench oscilloscopes, four independent analog channels, 1GSa / s high-speed real-time sampling, 2mV-10V / DIV high input sensitivity, 250MHz high bandwidth.
Pass / Fail testing, extensive trigger functions, dynamic cursor tracking waveform recording and playback, and desktop oscilloscope similar interface, easy to use, cost-effective.
USB2.0 interface, plug and play, free external power supply.

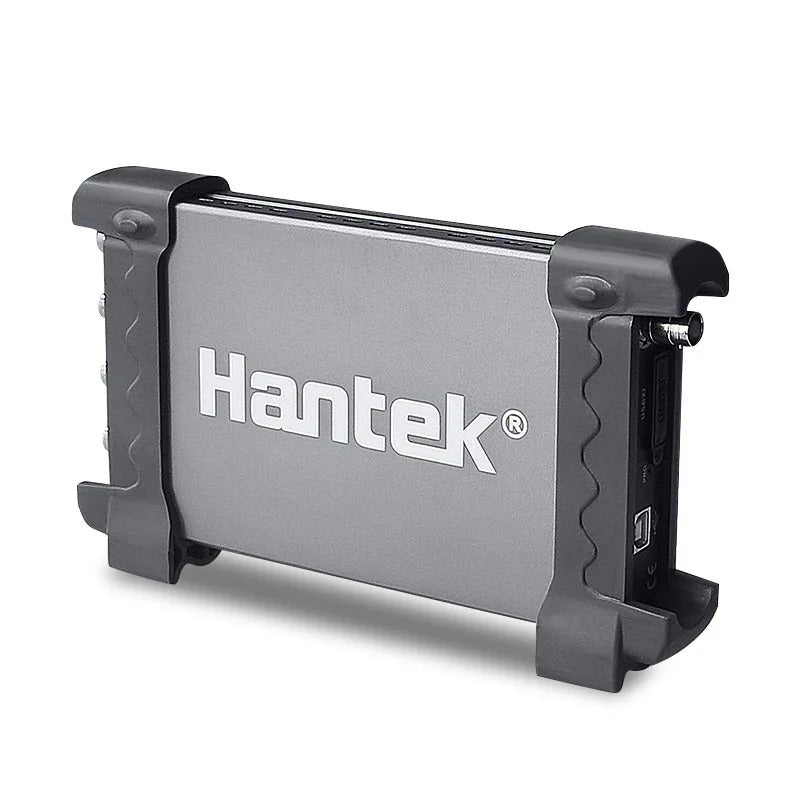

Excellent industrial design, compact, easy to carry, and the shell is made of anodized aluminum of the iPad, not only beautiful, but also improves the alloy surface hardness, good heat resistance and abrasion resistance.

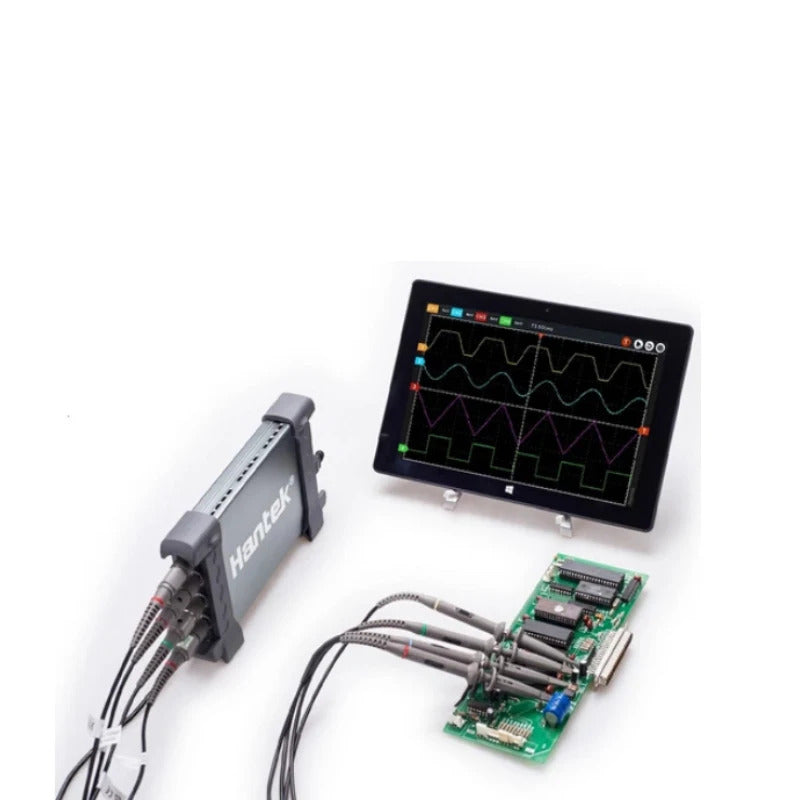

More suitable for tablet PCs, notebook computers, product line maintenance, easily on business.
Software Support: Windows10, Windows 8, Windows 7
Waveform data can be time-and voltage output to EXCEL, BMP, JPG.
More than 20 kinds of automatic measurement functions, PASS / FAIL Check, be suitable for engineering applications.
Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y display.
FFT spectrum analysis.
A computer can connect many DSO, extend channel easily.

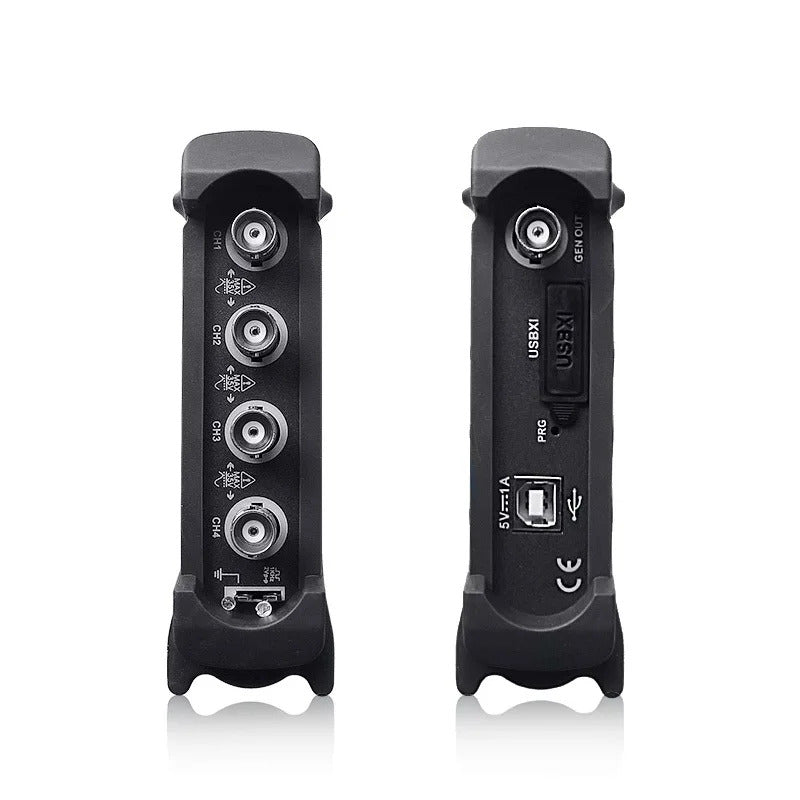

USBXI standard interface, easy to insert USBXI chassis, consisting of a combination of instruments.
Secondary development library DLL provides, Labview \ VB \ VC \ QT developers provide example
Characteristic:
Model |
Hantek. 6204BD. |
Bandwidth |
200MHz |
Channel |
4 CH |
Real-time Sampling Rate |
1GSa/s |
Memory Depth |
64K |
Time Base Precision |
±50ppm |
Time Base Range |
2ns/div-1000s/div (1-2-4 sequences |
Input Impedance |
1MΩ 25pF |
Input Sensitivity |
2mV/div~10V/div |
Vertical Resolution |
8Bit |
Vertical Displacement Range |
2mV. ~ 10V/div @ x1 probe; 20mV ~ 100V per second @ x10 probe; |
DC Gain Accuracy |
±3% |
Bandwidth |
20MHz |
Trigger Mode |
Edge, Pulse, Video, Alternative |
Trigger Source |
CH1, CH2, CH3,CH4 |
Waveform Signal Process |
+, -, x, ÷, FFT, Invert |
Cursors Measurement |
Cross, Trace, Horizontal, Vertical |
Auto Measurement |
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
Volume |
175mm * 105mm * 25mm |
Weight |
0.9KG |
Accessory |
2 passive probes, 2 gator clip lines |

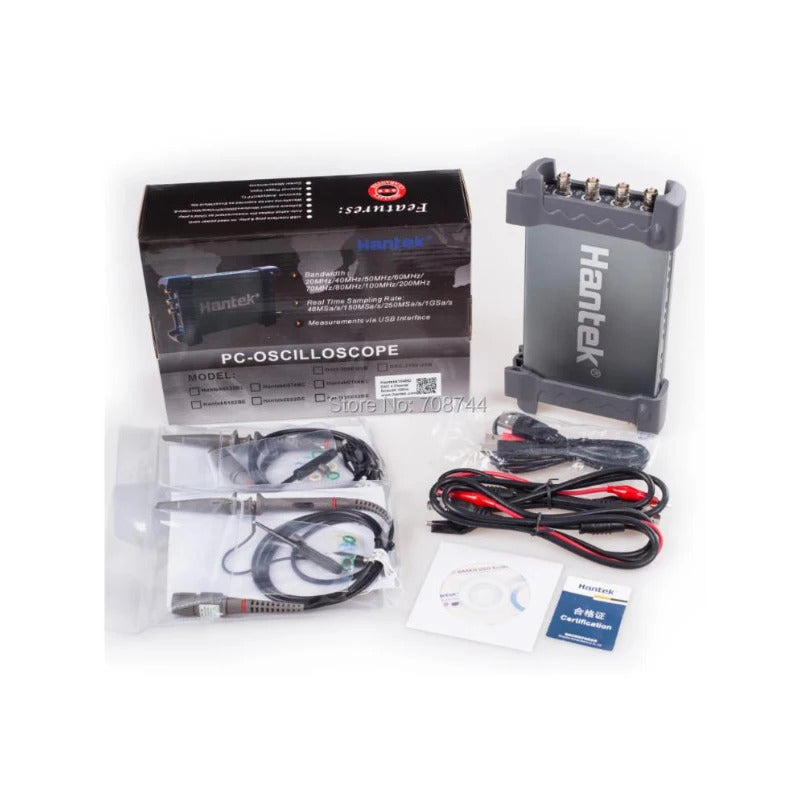

Package Listing:
1 x 6204bd usb oscilloscope
2 x oscilloscope probe;(Note:Just 2pcs probes in the package,if you want to buy more,please contact with us directly!!!)
2 x BNC - clip cable;
1xBNCTOBNC;
1 x usb cable;
1 x CD (driver / manual... inside)
