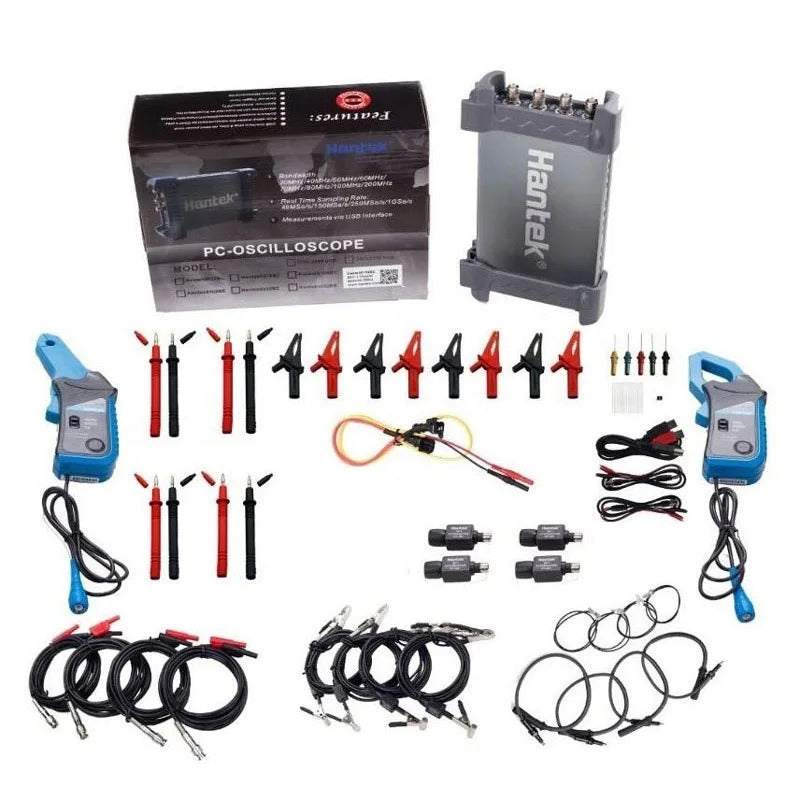

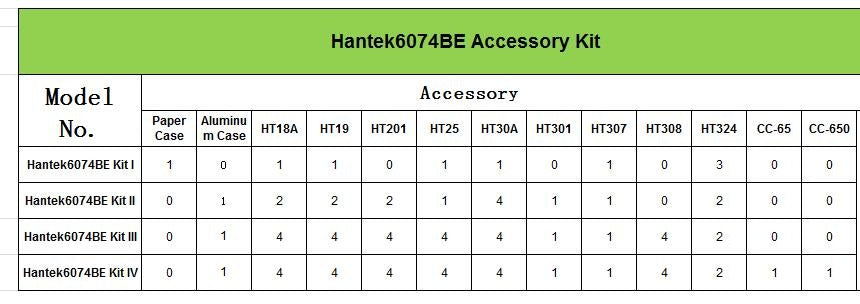

Hantek Automotive USB/PC Oscilloscope Hantek6074BE Kit I II III IV 4 Channel Oscilloscope Automotive USB Oscilloscope 70MHz 1GSa

DescriptionFeature

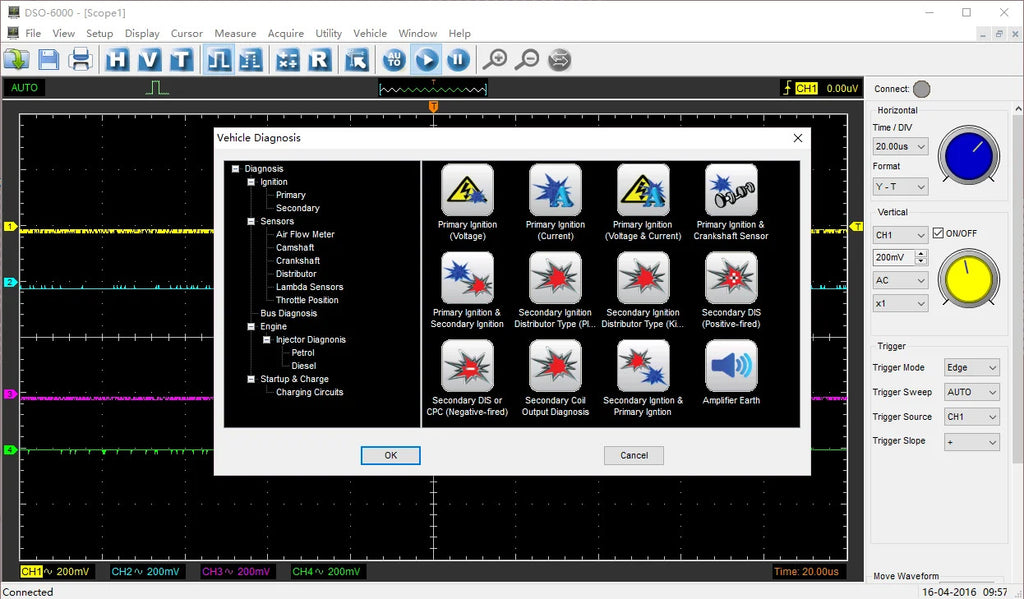

• Standard equipped over 80 types of automotive measurement function；

First Diagnosis: Intake manifold vacuum & ignition, Petrol fumes adjusting valve vacuum & ignition, Idle exhaust ignition, Starting exhaust ignition

Ignition: primary and secondary

Sensor: Air Flow Meter, Camshaft, Crankshaft, Distributor, Lambda sensor, Throttle position

Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH long time acquisition, LIN bus

Performer: Petrol/Diesel

Starter and charging circuits

• Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use.Support WIN10/ WIN8/WIN7 etc.

• USB 2.0 interface plug and play, and no need extra power supply;

• Great function, More than 20 kinds of automatic measurement function, PASS/FAIL Check function.Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.

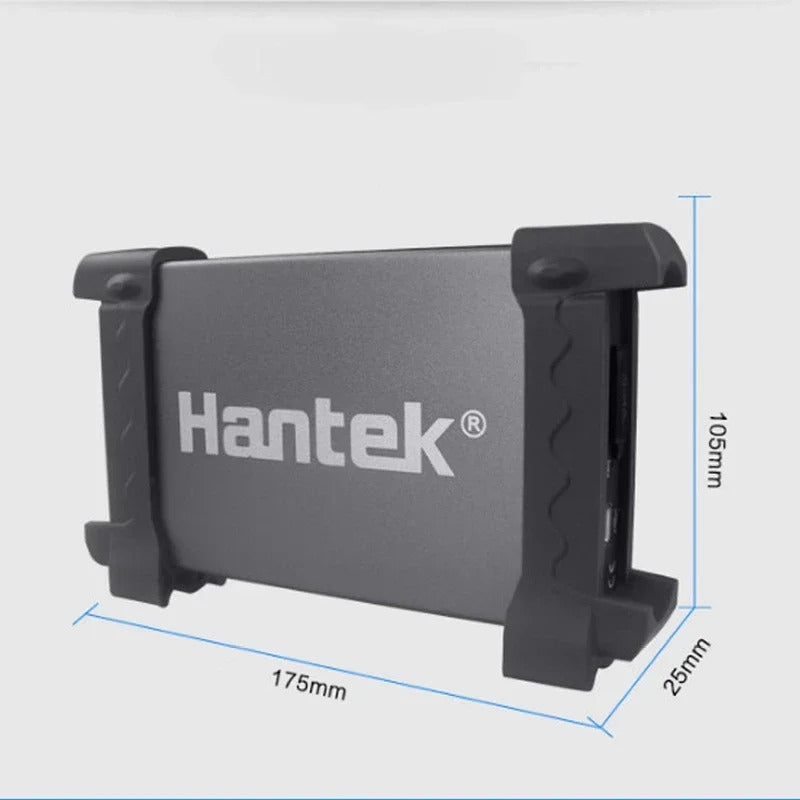

• Good mechanical design with small size which is easy for carrying.The outer case is made by the same material with iPad - Anodised aluminium.It has great heat resistance and abrasive resistance with beautiful appearance.The hardness of aluminium alloy surface is greatly improved.

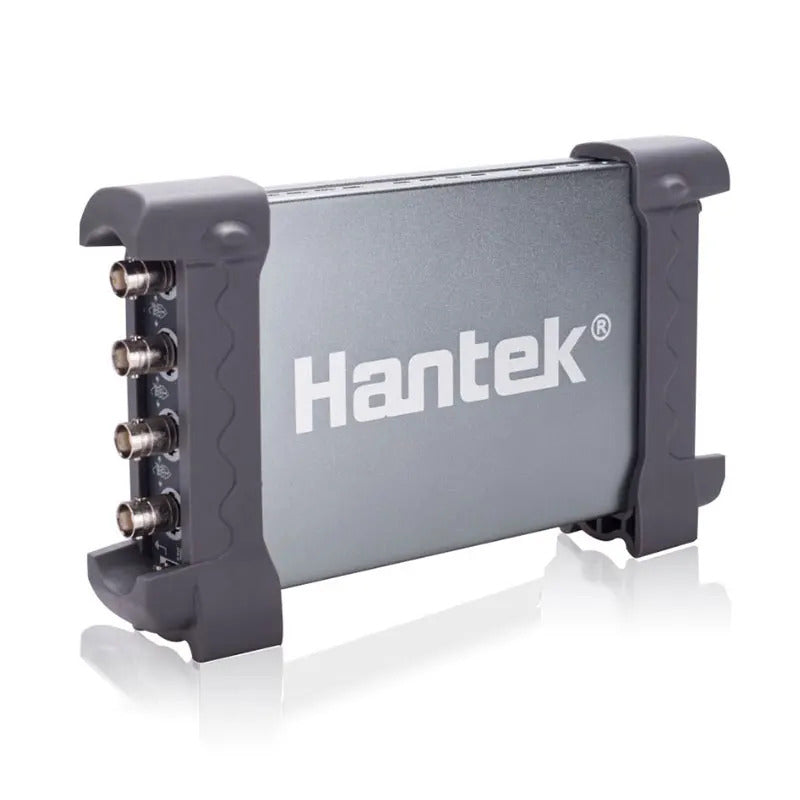

• 4 channels oscilloscope, 1GSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high bandwidth,

• The waveform data could be output to EXCEL,BMP,JPG.

• Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply, divide, X-Y display.

• FFT spectrum analyzer

• One computer could connect with multiple oscilloscopes, expand the channel number easily.

• Provide secondary development library DLL; Provide Labview\VB\VC\QT developing examples
