Hantek DDS-3005 DDS3005 USB PC USB Function/Arbitrary Waveform Generator 14bits D/A Resolution USB2.0 2.7GHz Frequency
Hantek DDS-3005 DDS3005 USB PC USB Function/Arbitrary Waveform Generator DDS3005 14bits D/A Resolution USB2.0 2.7GHz Frequency
Features：

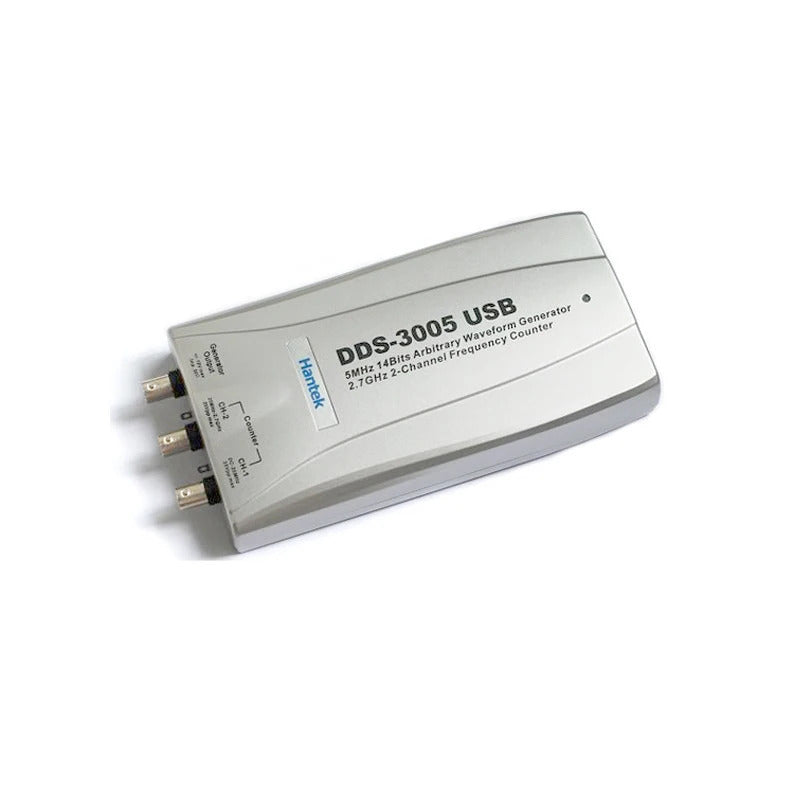

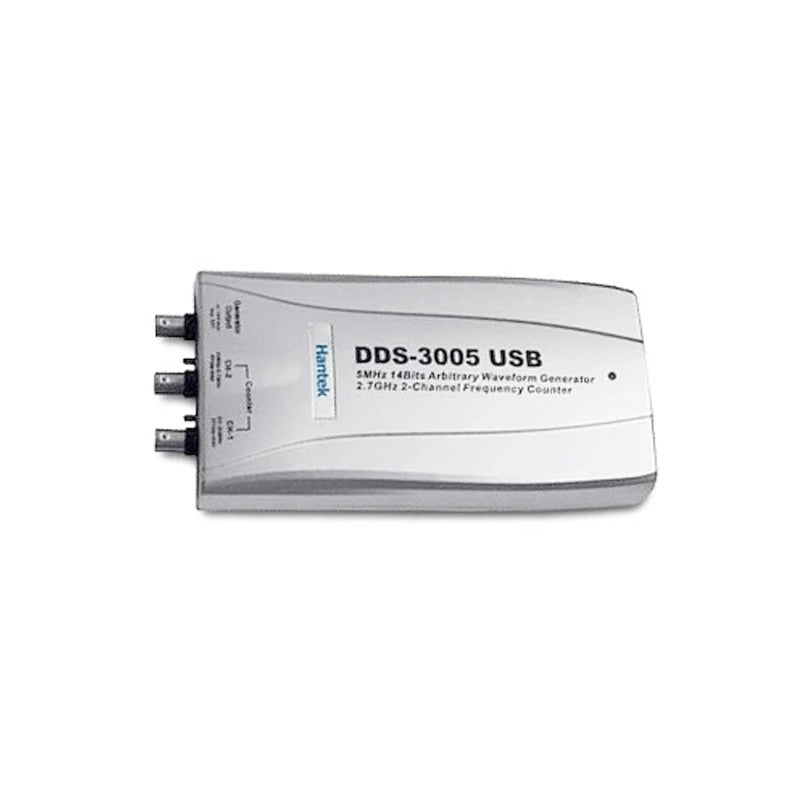

The Hantek DDS-3005 is 5 MHz signal generator that can output sine waves, square waves, ramps, trapezoidal waves, as well as arbitrary waveforms.This unit uses a USB (2.0) interface to software running on a Windows PC to develop and output the desired waveform.Once the waveform is running, it can continue running without the PC.It also has two channels of frequency counter.One channel can handle DC to 25 MHz., and the second channel can work with 25 MHz to 2.7 GHz.This incredibly powerful unit comes with an incredibly low price.
The Hantek DDS-3005 is a 5 MHz arbitrary waveform generator with two channels of frequency counter inputs.It uses your computer's USB port and monitor to provide a full function instrument.
Specifications：
Main Features |
|
Waveform Output Channel | |
Frequency Range |
0.1 Hz(DC) ~ 5 MHz |
Resolution |
0.1 Hz |
DAC Clock |
0 ~ 50 MHz Continuously Adjustable in steps of 0.2 Hz |
Memory Depth |
256 K Sample |
Vertical Resolution |
14 Bits |
Stability |
< 30 ppm |
Amplitude |
±10 V Max |
Output Impedance |
50? |
Output Current |
50 mA, Peak Voltage = 100 mA |
Low Pass Filter |
5 MHz, 1 MHz, 100 KHz, 10 KHz, 1 KHz // Programmable Control |
Harmonic Wave Distortion |
-65dBc(1 KHz), -53 dBc(10 KHz) |

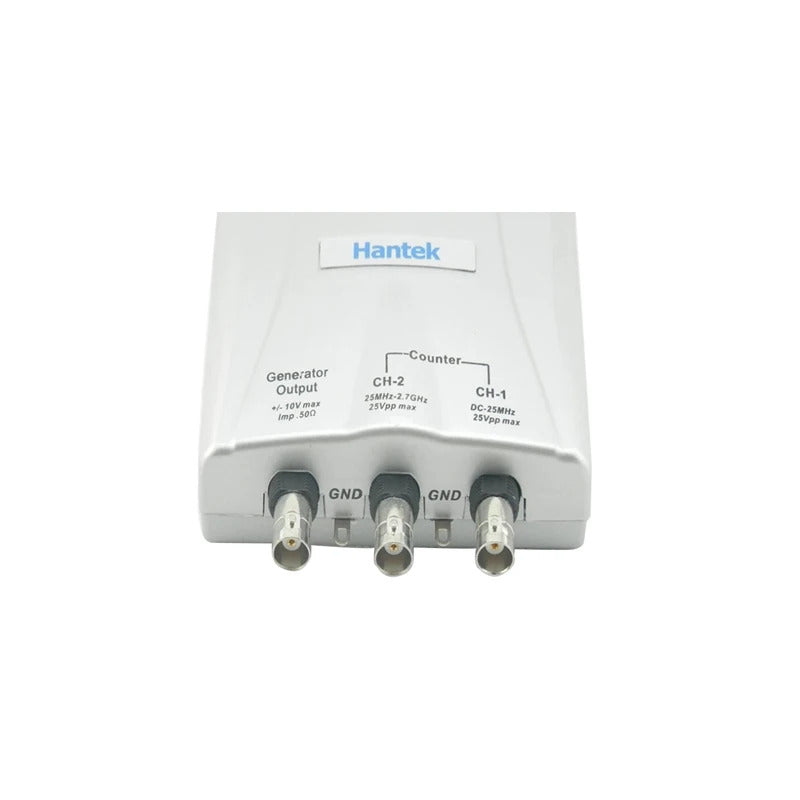

Frequency Counter Channel 1 |
|
Range |
DC ~ 25 MHz |
Input Amplitude |
400 mVpp ~ 25 Vpp |
Coupling Mode |
AC, DC // Programmable |
Accuracy |
±Time Base Error ±1 Count |
Input Impedance |
>50 K? |
Frequency Counter Channel |
2 |
Range |
25 MHz ~ 2.7 GHz |
Input Power |
±20 dBm. |
Coupling Mode |
AC |
Accuracy |
±Time Base Error ±1 Count |
Input Impedance |
50 ? |
Standard Frequency |
25 MHz |
Frequency Stability |
20 ppm Max. |
Aging Rate |
±1 ppm/year |

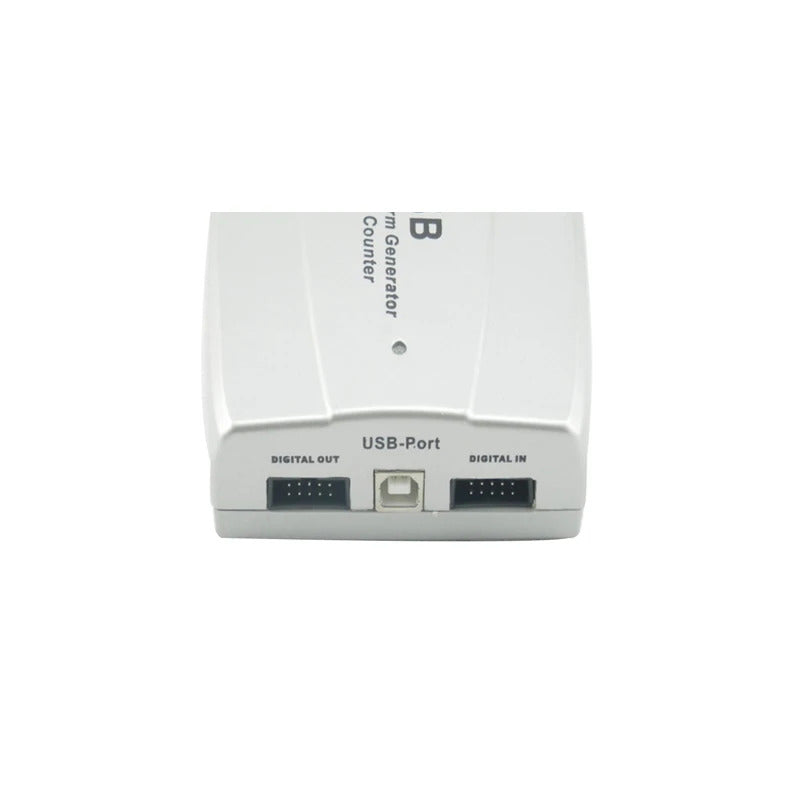

Digital Inupt and Output |
|
Bits |
8 Bits + Synchronized Signal 1 Bit + External Signal 1 Bit |
Level |
3/5 V TTL/CMOS |
Working Environment | |
Working Temperature |
0 ~ 70 Celsius |
Working Humidity |
0 ~ 65% RH |
Weight |
10 oz.// 0.29 Kg |

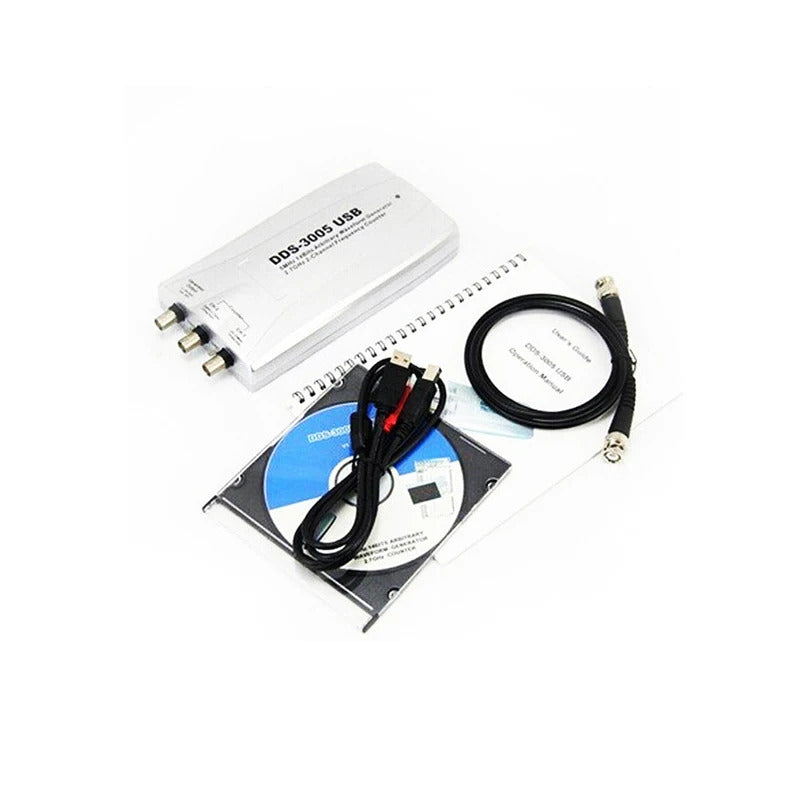

Package Including |
|
