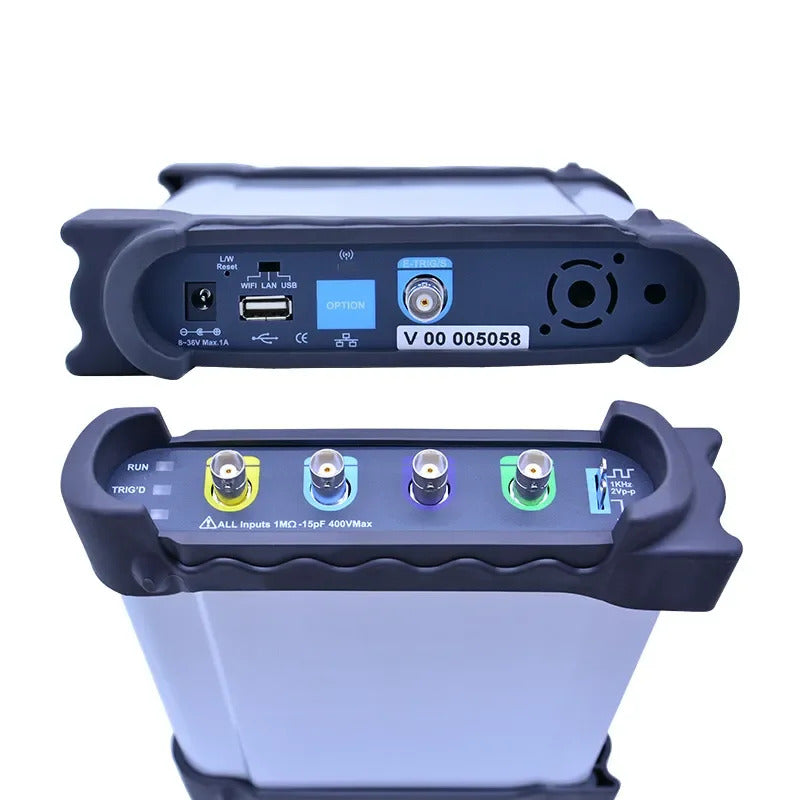

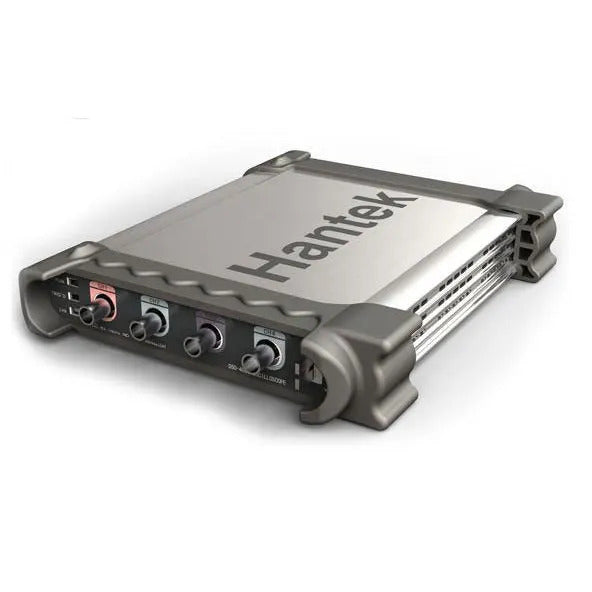

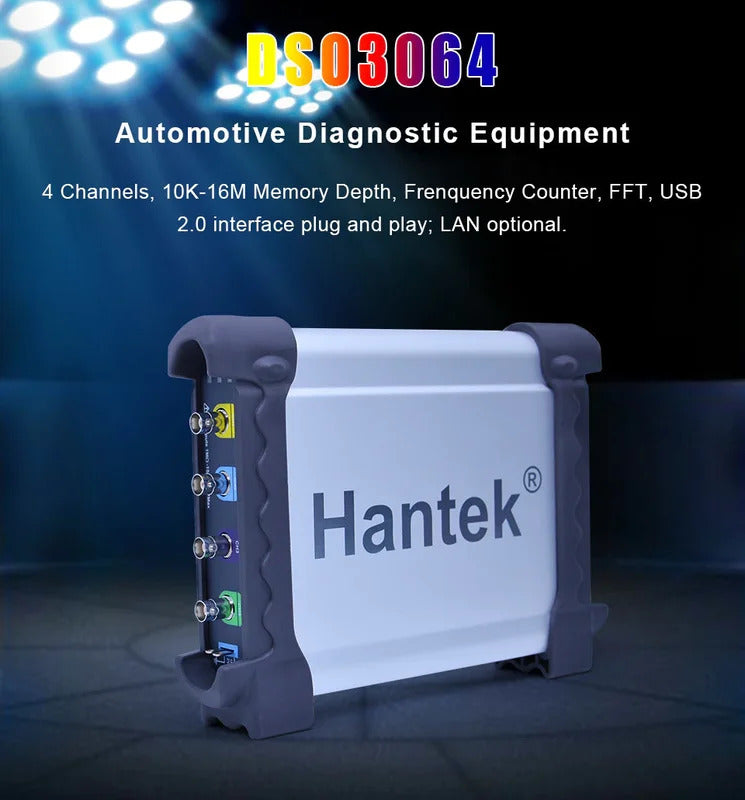

Hantek High Accuracy USB/PC Oscilloscope Hantek DSO3064/A 4 Channel virtual Diagnostic Oscilloscope Digital Vehicle Maintenance
Description
Fashionl |
|||||

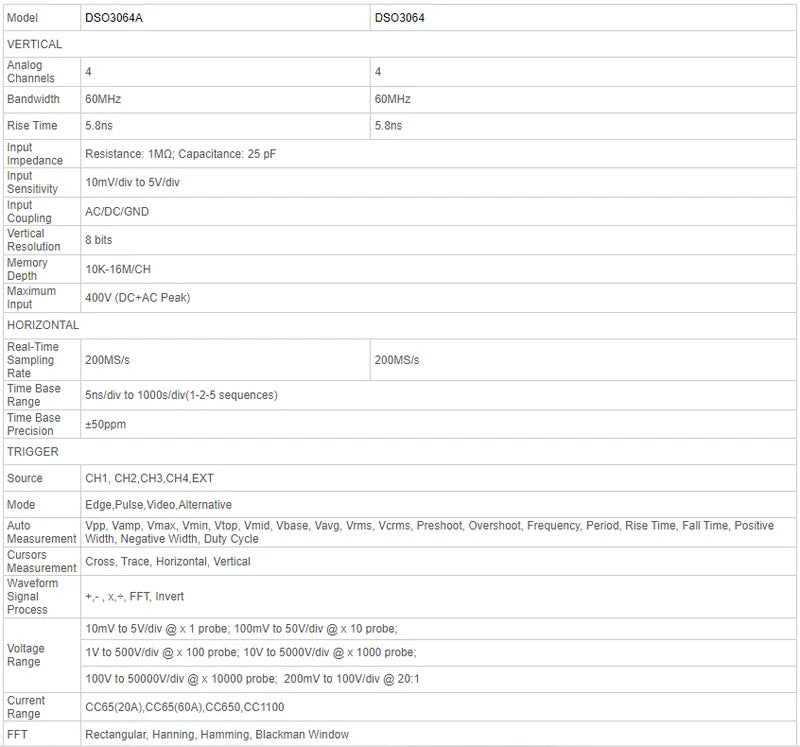

VERTICAL | |||||
Analog Channels. |
4 |
4 |
|||
Bandwidth |
60MHz |
60MHz |
|||
Rise Time |
5.8ns |
5.8ns |
|||
Input Impedance |
Resistance: 1MΩ; Capacitance: 25 pF |
||||
Input Sensitivity |
10mV/div to 5V/div |
||||
Input Coupling |
AC/DC/GND |
||||
Vertical Resolution |
8 bits |
||||
Memory Depth |
10K-16M/CH |
||||
Maximum Input |
400V (DC+AC Peak) |
||||
HORIZONTAL | |||||
Real-Time Sampling Rate |
200MS/s |
200MS/s |
|||
Time Base Range |
5ns/div to 1000s/div (1-2-5 sequences) |
||||
Time Base Precision |
±50ppm |
||||
TRIGGER | |||||
Source |
CH1, CH2,CH3,CH4,EXT |
||||
Mode |
Edge,Pulse,Video,Alternative |
||||
Auto Measurement |
Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle |
||||
Cursors Measurement |
Cross, Trace, Horizontal, Vertical |
||||
Waveform Signal Process |
+, -, , x,÷, FFT, Invert |
||||
Voltage Range |
10mV to 5V/div @ x 1 probe; 100mV to 50V/div @ x 10 probe; |
||||
1V to 500V/div @ x 100 probe; 10V to 5000V/div @ x 1000 probe; | |||||
100V to 50000V/div @ x 10000 probe; 200mV to 100V/div @ 20:1 | |||||
Current Range |
CC65(20A), CC65(60A), CC650, CC1100 |
||||
FFT |
Rectangular, Hanning, Hamming, Blackman Window |
||||
Math |
Adition, subtraction, multiplication, division |
||||

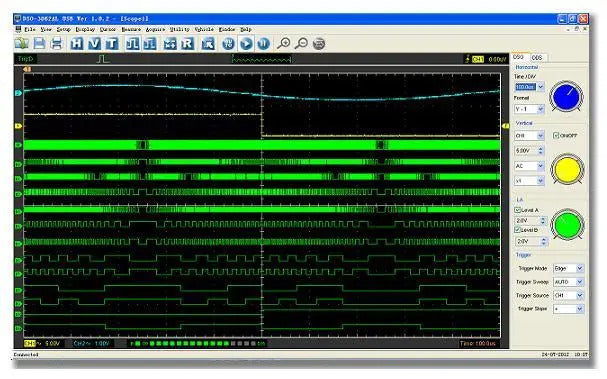

Logic Analyzer | |||||
Arbitrary Waveform Generator Mode | |||||
Waveform Frequency |
DC~25MHz |
-- |
|||
DAC |
2K~200MHz adjustable |
-- |
|||
Frequency Resolution |
0.10% |
-- |
|||
Channel |
1CH waveform output |
-- |
|||
Waveform Depth |
4KSa |
-- |
|||
Vertical Resolution |
12 bit |
-- |
|||
Frequency Stability |
<30ppm. |
-- |
|||
Wave Amplitude |
±3.5V Max. |
-- |
|||
Output Impedance |
50 Ω. |
-- |
|||
Output Current |
50mA Ipeak=50mA |
-- |
|||
System BW |
25M |
-- |
|||
Harmonic Distortion |
-50dBc(1KHz), -40dBc(10KHz) |
-- |
|||

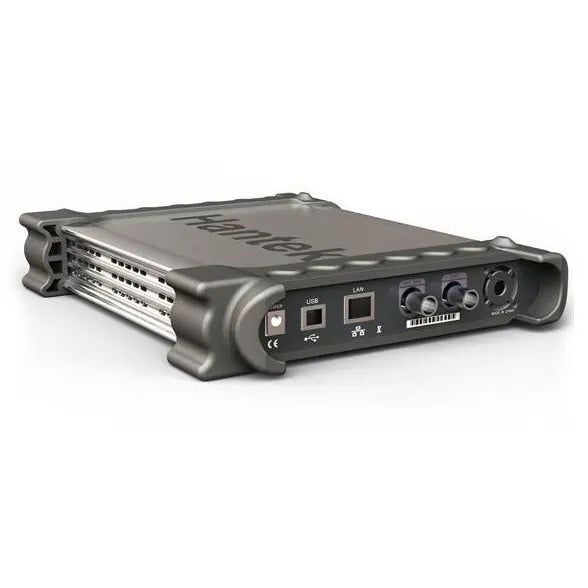

INTERFACE |
USB 2.0 (Lan Optional) |
||||
POWER SOURCE |
8--36V Wide range of input voltage, suitable |
||||
Volume |
255 x 190 x 45 (mm) |
||||
Weight |
1Kg |
||||
Features
Function Picture
