Hantek MSO5102D Mixed Signal Digital Oscilloscope 100MHz 16 Logical Channels +2 Analog Channels + External Trigger Channel

Hantek MSO5102D Mixed Signal Digital Oscilloscope 100MHz 16 Logical Channels +2 Analog Channels + External Trigger Channel

$400.34

Hantek MSO5102D. Mixed Signal Digital Oscilloscope 100MHz. 16 Logical Channels +2


Analog Channels + External Trigger Channel

Features:
16 channels logic analyzer + 2 channels oscilloscope + external trigger.
Big and clear display (7.0-inch color LCD, high revolution 800 x 480), clear lifelike waveform display.
1GSa/s real time sampling rate.
100MHz bandwidth, 1M memory depth.
Powerful trigger function.
USB host, support flash memory card storage and USB interface system upgrade.
Ultrathin design, handy volume, easily portable.
Oscilloscope Function:
Bandwidth 100MHz.
Each channel record length up to 1M.
Real time sampling rate up to 1GSa/s.
Powerful trigger function.
More than 20 kinds of automatic measurement function.
Logic Analyzer Function:
16 channels divided into 2 groups which is able to setup threshold level individually.
Real time sampling rate up to 500MSa/s.
Powerful trigger function: edge, duration, pulse width, code-type, queen, repeat.
Specifications:

Oscilloscope Specification

Horizontal

Fashionl

MSO5062D

MSO5102D

MSO5202D

Bandwidth

60MHz

100MHz

200MHz

Sampling Rate Range

Max. 1GS/s

Waveform Interpolation.

( sin x) /x

A/D Converter

8-bit resolution, each channel sampled simultaneously

Volts/DIV Range

2mV/div. ~ 5V/s at input BNC

Optional Analog Bandwidth Limit (typical)

20MHz

Low Frequency Response (-3 pieces)

≤10Hz at output BNC

Hold off Range

100ns-10s


Mode

When <, >, =, or ≠ trigger; positive or negative pulses.

Range

20ns.   ~10s

Fashion

When <, >, =, or ≠ trigger; positive or negative slopes.

Range

20ns-10s

Overtime Trigger

From the rising or falling edge; Setup time: 20-10 s

Alternative Trigger

Type

7” TFT 64K. true color LCD

Resolution

800x480 dots

Frequency (typical)

1kHz

Power Supply

Voltage

100-120VACRMS(10%),45Hz to 440Hz CAT

120-240VAC RMS (10%), 45Hz to 66Hz, CAT

Power

< 30W

Fuse

2A, T Rating, 250V

Environment

Temperature

Working: 32 to 122 (0 to 50)

Not working: -40 to 159.8 (-40 to +71)

Cooling Type

Convection

Humidity

+ 104 or below (+ 40 or below) : ≤ 90% relative humidity

+ 106 to 122 (+ 40 to 50) : ≤ 60% relative humidity

Dimension

Length

313mm

Height

142mm

Thickness

108mm

Weight

Not including the weight of package and accessories

2.08Kg.

Packing Dimension

Length

395mm

Width

410mm

Height

275mm

Gross Weight

Including all accessories

about 3.2kg
Package Content:
1*MSO5102D Oscilloscope
1*User Manual

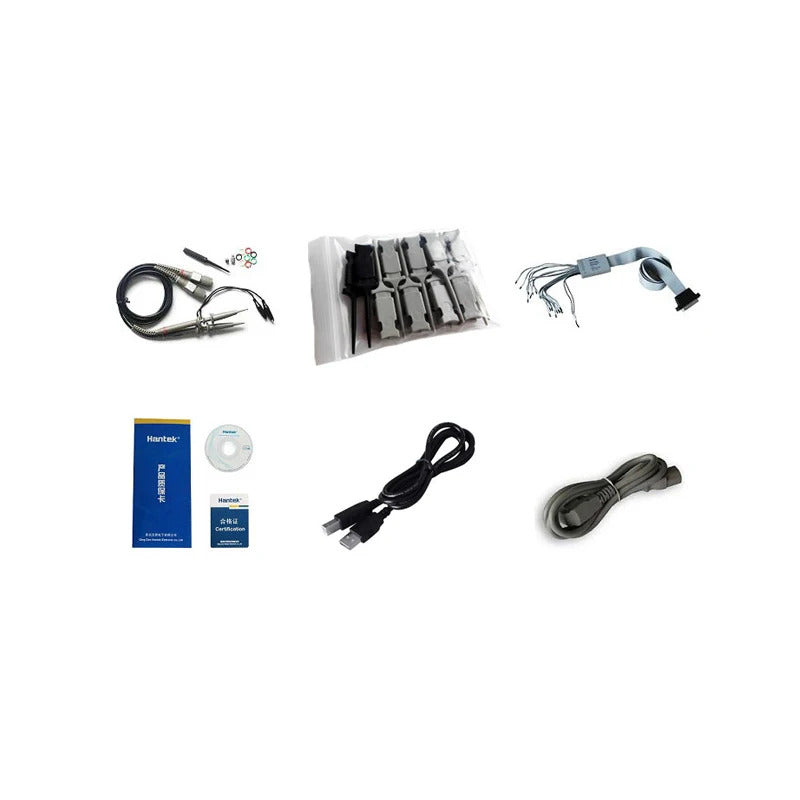

Other accessories showed as pictures
Color
