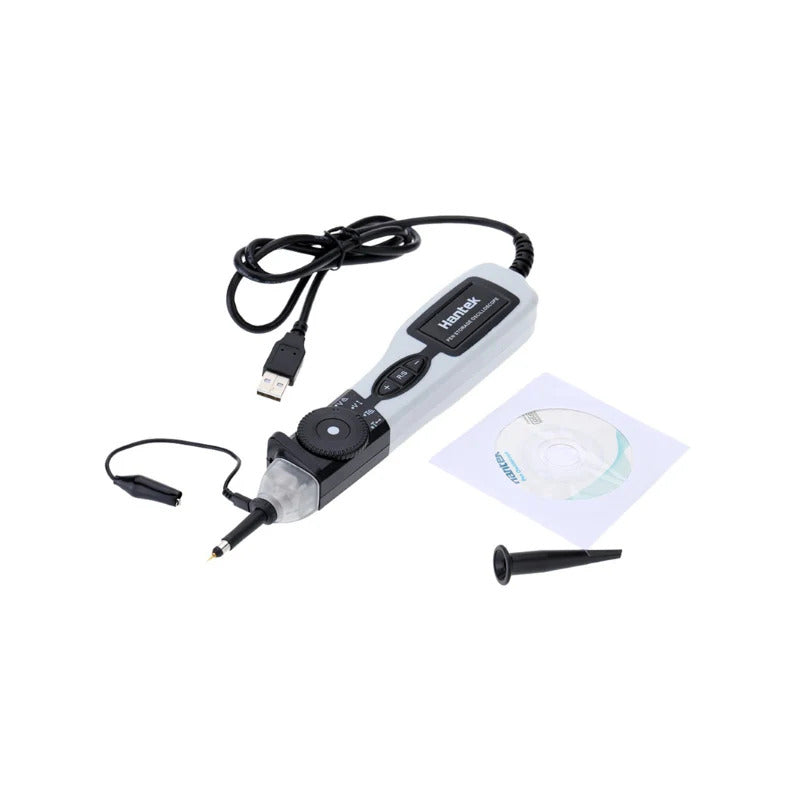

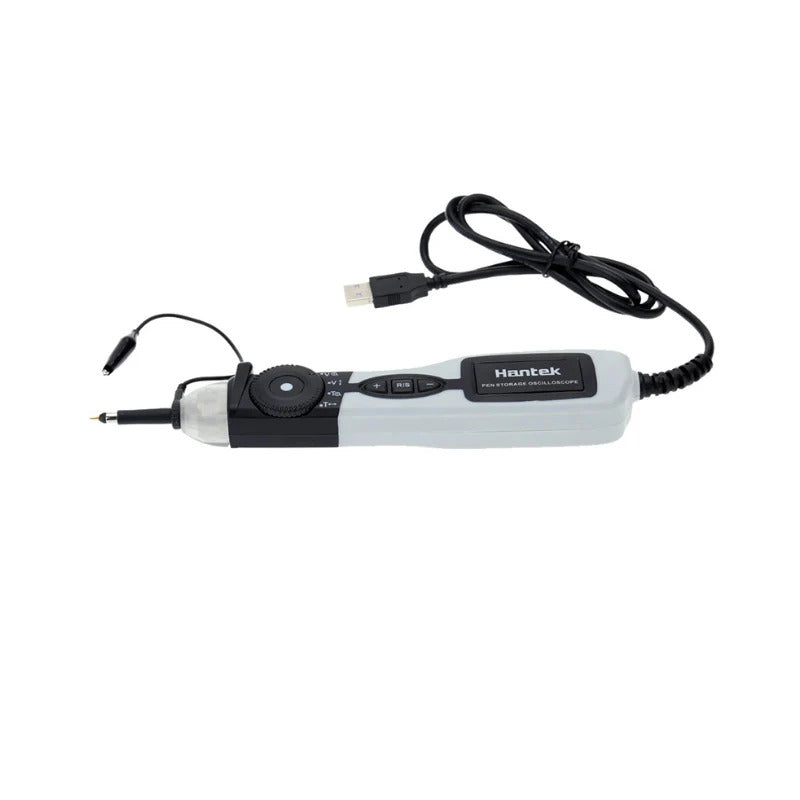

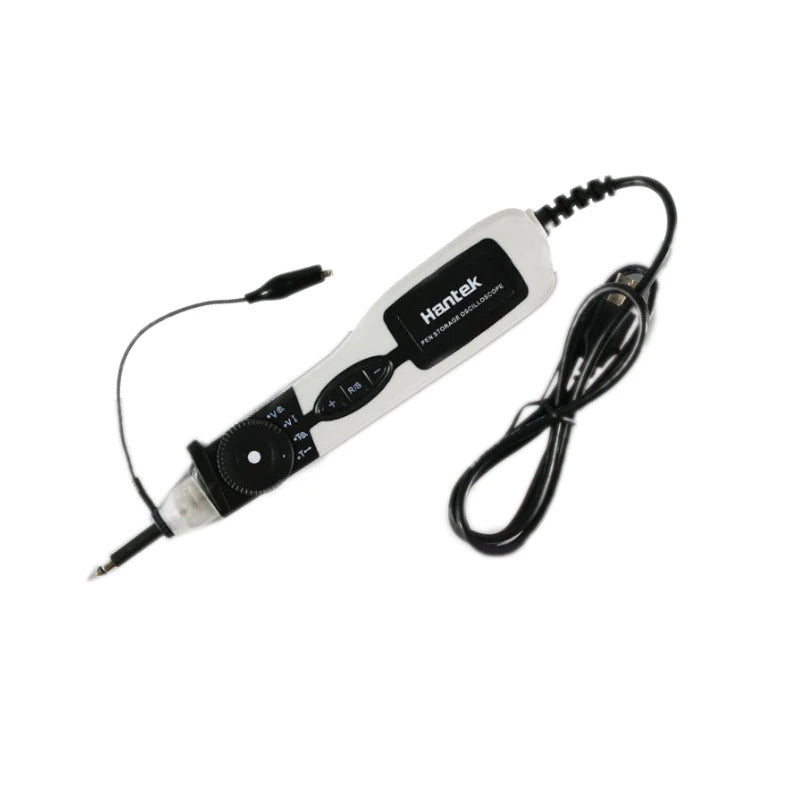

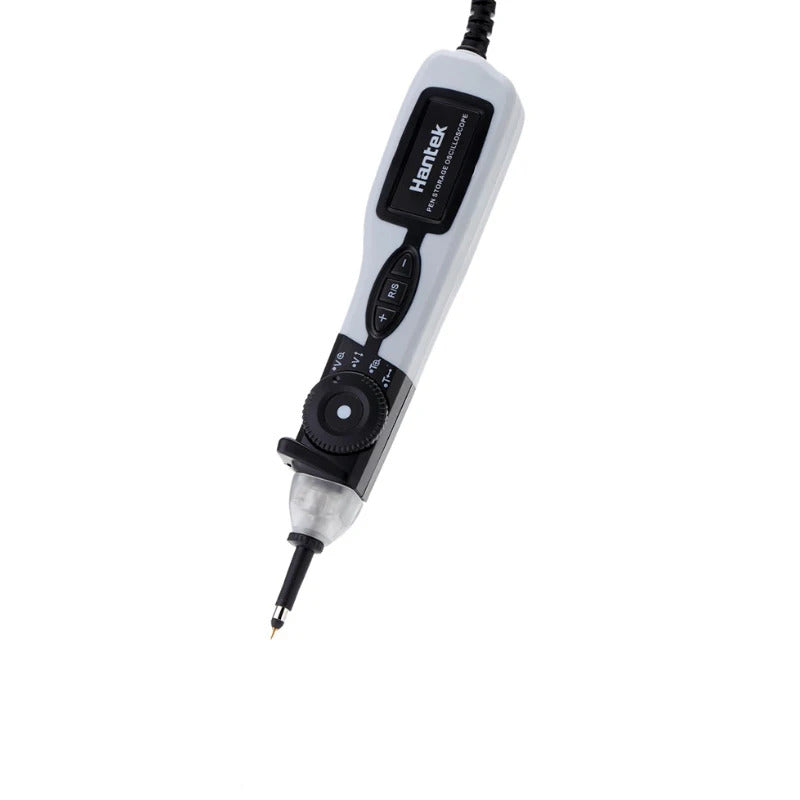

Hantek PSO2020 Portable Pen Storage USB Oscilloscope 20MHz Bandwidth 96MSa/s Sampling Rate 1 Channel
Hantek PSO2020 Portable Pen Storage USB Oscilloscope 20MHz Bandwidth 96MSa/s
Sampling Rate 1 Channel
Features:
Powered by USB interface, plug and play device; with automatically measurement function, easy for operation.

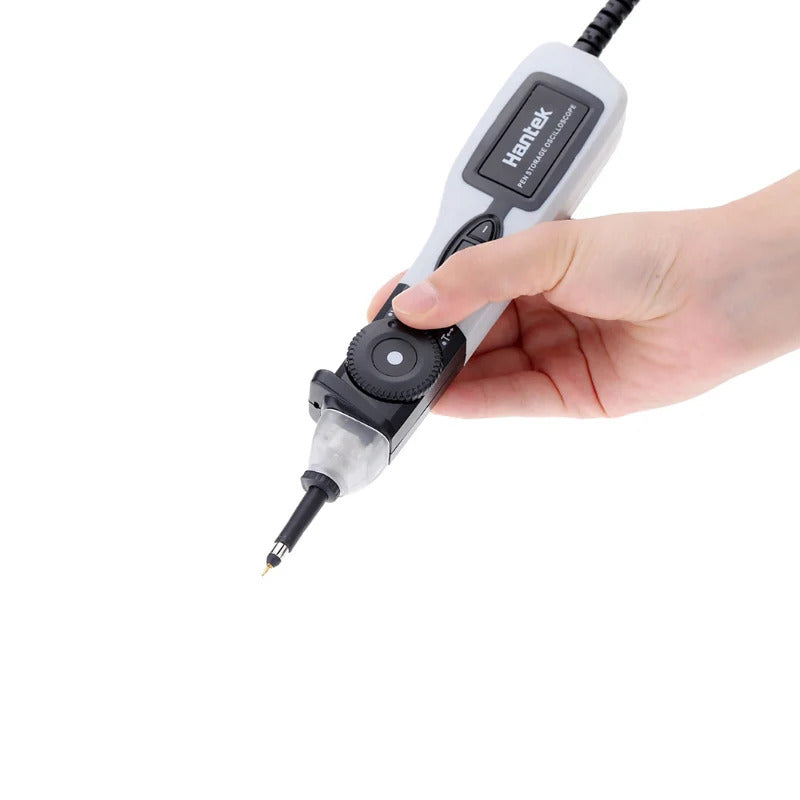

Change the voltage/time division gear with single hand, no need to operate on the computer.
Built-in LED light, providing better light for user's convenient operation in dark environment.
Light weight and portable in design, suitable for use.
DVM(digital voltmeter)function, real-time display the voltage measurement results.
20MHz bandwidth, meet the requirements of measurement.
Different kinds of language available, 20 types of auto measurement functions, pass/fail function.
Operating system:Windows NT,Windows2000/XP, WIN7/8.
Possible to connect to laptop directly, high cost performance.
Specifications:
Vertical
Channel: 1
Bandwidth: 20MHz
Input Impedence: 1MΩ
Input Sensitivity: 20mV/div to 50V/div
Input Coupling: DC/AC/GND
Vertical Accuracy: ±3%
Resolution: 8 bits
Memory Depth:Maximum 1M/CH
Max.Measurement Voltage: ±50V (Without any attenuation)
Input Protection: 100V (DC+AC Peak)
Horizontal
Max.Sample Rate: 96MSa/s
Time Base Range: 1ns/div to 5000s/div (Step by 1-2-5)
Trigger
Trigger Source: CH1
Trigger Type: Edge Trigger
Cursor and Measurement
Voltage Measurement: Vmax, Vmin, Vpp, Vamp, Vtop, Vmid, Vbase, Vavg, Vrms, Vcrms, Preshoot, Overshoot,
Time Measurement: Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle
Cursors Measurement: Cross, Trace, Horizontal, Vertical
Math: +,- , x,÷, FFT
Voltage Range: 20mV to 20V/div @ x 1 probe
